Overview of Vertical Cartoning Machine

Shuoma Vertical Rotary Cartoning Machine adopts a multi-station rotary table structure, integrating functions of automatic carton opening, flap folding & sealing, and finished product output. The machine supports both fully automatic filling by optional automatic feeding module and manual filling to meet diverse working conditions.

Developed specifically for small and medium-sized enterprises, it is equipped with a quick carton adjustment mechanism for fast format changeover. Functional modules can be flexibly selected according to production requirements, delivering strong expandability. Featuring stable operation and small footprint, the machine is widely applicable to cartoning of small-sized products including daily chemicals, pharmaceuticals, health care products and small industrial goods. It can run as a standalone unit or connect to upstream production lines. With high flexibility and cost performance, it helps small and medium-sized enterprises achieve packaging automation upgrading.

Applicable carton types:

Cartoning Process:

Carton Forming → Bottom Locking → Manual / Robotic Loading → Carton Sealing → Discharge

Configuration Parameters:

NO	Item	Parameters	Remarks
1	Number of stations (6/10 stations optional)	6 Stations	Non-standard Customization
2	Filling Manipulator, Inner Tray Loader, Leaflet Inserter, Coding Device		Optional Items
3	Cartoning Speed / Output	Approx. 1500–1800 cartons/h
4	Carton Loading Capacity	Hopper length: approx. 0.500 m, extendable on request; length not to exceed 1 m recommended.	Low Material Alarm

Detailed Introduction:

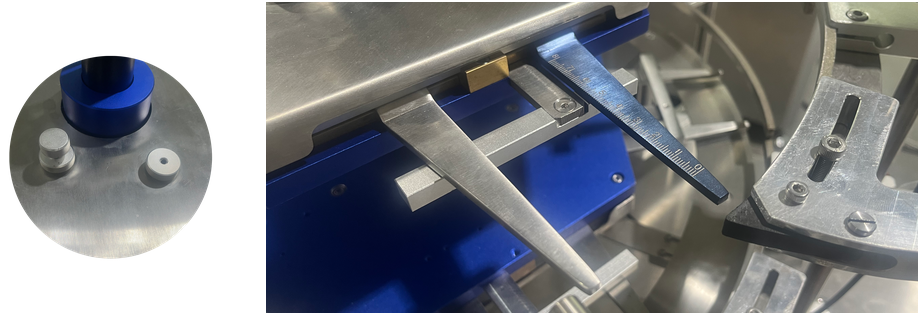

The carton width and depth can be adjusted by tuning the lotus coupling synchronous mechanism through locking holes.

All core mechanisms allow rapid fine adjustment.

Applicable Range:

No	Item	Parameters	Remarks
1.	Carton Size Range	Min25×25×50mm	C×B×A
1.	Carton Size Range	Max80×80×200mm	C×B×A
2.	Carton Material Requirements	White Cardboard250-350g/m² Grey Cardboard300-400g/ m²	Pre-folding of cartons
3.	Compressed Air Pressure & Consumption	≥0.6Mpa/≤0.2m³分
4.	Power	220V
5.	Machine Weight	≈400Kg
